PIX-Force® 拖拉机皮带

体验产品

我们令人惊叹的交互式 3D 皮带模型让观众可以通过丰富的渲染从任何角度或比例查看产品，从而获得产品的动手体验。

产品规格

  • 最适合下一代高速发动机
  • 特殊齿形提高了柔韧性和散热率
  • 更高的功率传输能力，最适合较小直径的带轮
  • 经过工程和化学处理的模量和低拉伸绳索，可承受更高的负荷，无需拉伸
  • 增强的摩擦力和侧向刚度
  • 适用于HEMM（重型土方机械）应用的优异的耐油和耐热性
  • 温度范围：-25°C至+100°C，如果是EPDM橡胶带，-45°C至+120°C

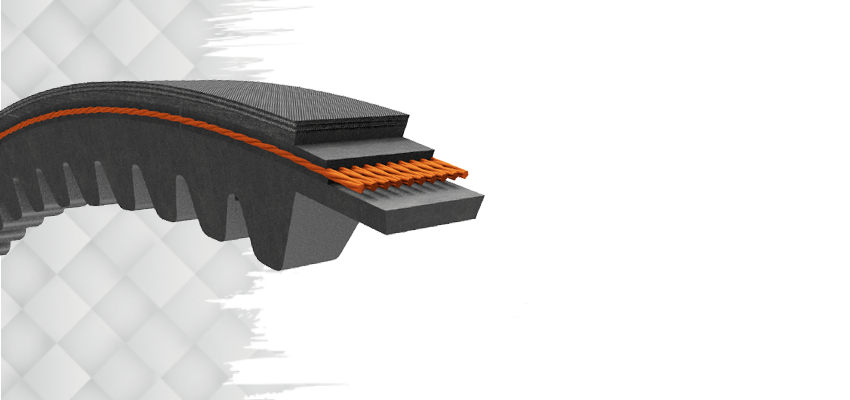

具体结构

  1. 特殊设计的高耐磨抗裂帆布
  2. 提高动态粘合性能的特殊高粘合胶
  3. 经过特殊处理的聚酯绳确保了皮带的最小拉伸
  4. 用于高功率传输和尺寸稳定性的纤维加载压缩复合材料
  5. 模压齿槽型材，具有卓越的柔韧性和散热性

注意

Intermediate sizes are available upon request

参考标准

BS ISO-5287, DIN 7753-3, SAE J 636, JASO E 107


应用

高温工业驱动器、压缩机、鼓风机、大功率压力机、热轧机、纺织机械、引风机、送风机、挖掘机、泵、发电机、粉碎机等。


产品范围

Section Top Width (mm) Thickness (mm) Angle (Degree) Manufacturing Range Length Designation
Min. (mm) Max. (mm)
X9.5 / AVX10 10 8 36 550 5000 La
X12.5 / AVX13 13 10 36 550 5000 La
X10A 10.5 8 36 550 5000 Le
X11A 11.5 8 36 550 5000 Le
X13A 13.5 9 36 550 5000 Le
X15A 17 10.5 38 550 5000 Le
X17A 18.5 11 36 550 5000 Le
X20A 21.5 12.5 36 550 5000 Le
XV10 10.5 8 38 550 5000 Le
XV13 13 9 38 550 5000 Le
XV15 17 11 38 550 5000 Le
XV20 22.5 13 38 550 5000 Le

特点


产品规格

  • Trapezoid faced ribs on a fibre reinforced rubber matrix for higher power transmission offering good resistance to wear and tear, facilitating quiet running
  • Reduced vibrations, shock absorber, low stretch and an excellent behaviour under heavy load conditions
  • Extremely flexible, capable to work on small pulley diameters and serpentine drives
  • Oil and heat resistant, extended service life, suitable for HEMM applications
  • Temperature range: -35°C to +130°C

具体结构

  1. Special top fabric of high wear resistance protects the belt from external agents such as Oil, grease, dust etc.
  2. Specially treated EPDM polyester tension member for high tensile strength with negligible elongation
  3. Fibre Loaded EPDM compression rubber for high thermal resistance to maintain the profile dimension for longer service life

注意

Intermediate sizes are available upon request

参考标准

ISO 9981, RMA IP 26


应用

Automotive engines, alternators, compressors, water pumps, fans, power-steering pumps, etc.


产品范围

Section Thickness (mm) Rib Pitch (mm) Min. Pulley Dia. (mm) Manufacturing Range Length Designation
Min. (mm) Max. (mm)
PK 4.5 3.56 45 280 5000 Le
DPK 7.0 3.56 50 1195 3255 Le

特点
