PIX-Force-XRU (Double-cog, EPDM, Moulded Raw Edge Cogged Belts)

体验产品

我们令人惊叹的交互式 3D 皮带模型让观众可以通过丰富的渲染从任何角度或比例查看产品，从而获得产品的动手体验。

产品规格

  • Highly engineered surface-cog profile improves flexibility and allows the Belt to operate optimally in compact and challenging operating conditions
  • Enhanced heat dissipation rate facilitates superior operational life compared to standard automotive Belts
  • Dimensional stability with increased grip and lateral rigidity resulting in higher drive efficiency
  • Complies with ISO-1813 (Antistatic guidelines)
  • REACH & RoHS compliant ensure Belts are eco-friendly while providing for improved sustainability
  • Temperature range: -35°C to 130°C

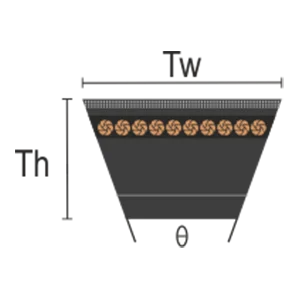

具体结构

  1. Specially engineered dual-cog profile for superior flexibility and faster heat dissipation rate.
  2. High tenacity, low stretch, specially treated polyester cord for high tensile strength and reduced slippage.
  3. High modulus EPDM compression rubber provides superior thermal resistance in high-ambient temperature conditions.

注意

Intermediate sizes are available upon request

参考标准

DIN 7753-3, SAE J 636, JASO E 107


应用

Automotive Engines, Alternators, Compressors, Water Pumps, Fans, Power Steering Pumps, etc.


产品范围

Section Top Width (mm) Thickness (mm) Angle (Degree) Length Range (mm) Length Designation
XRU-AVX10
 10.0
 8.0
 36
 700 to 3000
 La
XRU-AVX13
 13.0
 10.0
 36
 700 to 3000
 La
