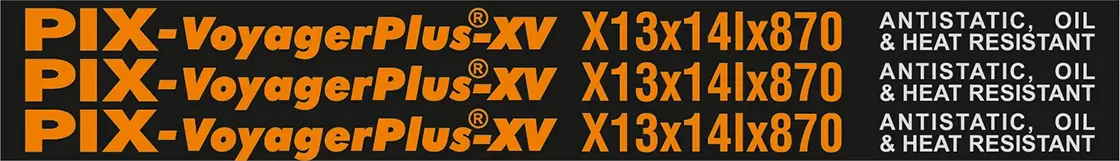

PIX-VoyagerPlus®-XV 无级变速传动皮带，电动汽车皮带
体验产品
我们令人惊叹的交互式 3D 皮带模型让观众可以通过丰富的渲染从任何角度或比例查看产品，从而获得产品的动手体验。
产品规格
- 在极端操作条件下保持高扭矩能力的卓越结构
- 特殊设计的齿形（单面或双面）具有更好的柔韧性和散热性
- 特殊设计的齿形为CVT传动中的皮带提供额外保护
- 卓越的捏合理，以更高的效率传输最大功率
- 降低打滑，提高产品寿命和效率
- 温度范围：-25摄氏度至+100摄氏度
具体结构
- 特殊帆布
- 高拉伸强度和最小延伸率的特殊处理聚酯线绳
- 纤维填充高模量底胶
- 有防裂底层帆布的保护的模压的齿
XX Series
- High performance moulded cog design with crack barrier for better flexibility & heat dissipation
- Specially treated tensile member for high tensile strength & minimal elongation
- Fibre filled high modulus base compound
XN Series
- Special top fabric layer
- Specially treated tensile member for high tensile strength & minimal elongation
- Engineered Cog design for better flexibility & heat dissipation
- Specially engineered precise notch-profile offers extra protection to the Belt in CVT Drives
- Fiber-filled high modulus base compound
注意
Intermediate sizes are available upon request
参考标准
PIX 专有
应用
电动汽车、ATV、汽车用无级变速器等。
产品范围
| Section | Top Width (mm) | Thickness (mm) | Angle (Degree) | Length Range (mm) |
|---|---|---|---|---|
| VP-X-TW TH A L | 10 to 40 | 10 to 25 | 22 to 40 | 600 to 2000 |
| VP-XX-TW TH A L | 10 to 40 | 10 to 25 | 22 to 40 | 600 to 2000 |
| VP-XN-TW TH A L | 10 to 40 | 10 to 25 | 22 to 40 | 600 to 2000 |
特点
