Toothed Belts

Toothed Belt or Moulded Raw Edge Cogged Belt is a V-Belt with moulded teeth on its inner surface.Toothed Belts offer more flexibility compared to the Wrap construction Belts and the tooth profile allows the accumulation of air pockets into it, which acts as heat absorber and prevents the temperature of the drive to enhance, during operation.

In the case of toothed Belts the teeth which run perpendicular to the Belt length reduces the bending stress over the Belt, they run cooler, lasts longer, and have a substantial operational efficiency compared to Wrap construction Belts. Toothed Belts can be used over the same pulleys as equivalently rated Wrap construction Belt Pulley.Toothed Belts are used in a wide array of mechanical devices, where high power transmission is desired.

PIX offers a wide range of toothed Belts of various profiles, such as; ZX, AX, BX, CX, DX; Classical sections. XPZ, XPA, XPB, XPC, Wedge Belt sections.  3VX, 5VX, 8VX; Narrow sections and 2LX, 3LX, 4LX, 5LX; Light-duty sections.

Besides the standard sections of toothed Belts, PIX also offers the High-power, maintenance-free Muscle series of Belts, which delivers high-power and are maintenance-free, offering compact drives.

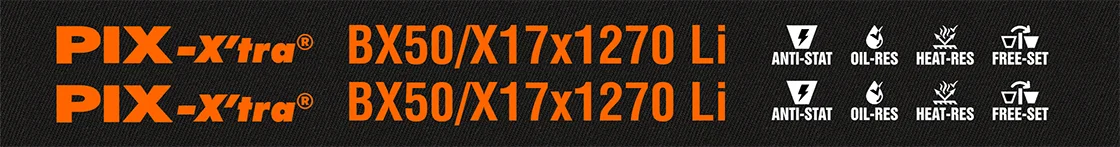

Moulded Raw Edge Cogged Belts

体验产品

我们令人惊叹的交互式 3D 皮带模型让观众可以通过丰富的渲染从任何角度或比例查看产品,从而获得产品的动手体验。

产品规格

  • Higher power transmission capacity than wrapped Belts
  • Special cog design for enhanced flexibility and heat dissipation rate
  • Suitable for drives using smaller diameter pulleys and high RPM
  • Anti-static, oil & heat resistant
  • Maximum Belt linear speed (Classical section: up to 30 m/Sec, Wedge: up to 42 m/Sec, Narrow: up to 45 m/Sec)
  • Temperature range: -25°C to +100°C

具体结构

  1. Special fabric layer
  2. Cushion rubber compound
  3. Specially treated & stabilized polyester cord
  4. Fiber-filled base compound
  5. Moulded cogs for better flexibility

注意

如有要求,可提供中间全系列尺寸

如有要求,可提供芳纶线绳结构

参考标准

IS 2494, BS 3790, ISO 4184, RMA IP 22, RMA IP 23


应用

工业驱动、发电机、鼓风机、球磨机、轧钢机、破碎机、压缩机、水泵、湿磨机、家用电器、水泥工业、钢铁工业等


产品范围

Section Top Width (mm) Thickness (mm) Angle (Degree) Min. Pulley Dia. (mm) Manufacturing Range Belt Length Factor (mm) Length Desg.
Min. (inch / mm) Max. (inch / mm) Lp to La Li to Lp Li to La
Classical Section
ZX
10.0 6.0 36 40.0 21.5" 200" 16
22
38
Li
AX 13.0 8.0 36 63.0 21.5" 200" 14
36
50
Li
BX 17.0 11.0 36 90.0 21.5" 200" 26
43
69
Li
CX 22.0 14.0 36 140.0 23.5" 200" 32
56
88
Li
DX 32.0 19.0 38 280.0 40.0" 200" 40
79
119
Li
Wedge Section
XPZ 10.0 8.0 36 56.0 550mm 5000mm 13
37
50
Lp
XPA 13.0 10.0 36 71.0 550mm 5000mm 18
45
63
Lp
XPB 16.3 14.0 36 112.0 550mm 5000mm 28
60
88
Lp
XPC 22.0 18.0 38 180.0 600mm 6300mm 30
83
113
Lp
Narrow Section
3VX 9.7 8.0 38 56.0 21.5" 200" 13
37
50
La
5VX
15.8 14.0 38 112.0 21.5" 200" 25
60
85
La
8VX 25.4 23.0 38 254.0 90" 200" 53
92
145
La
Light Duty Single V-Belts
2LX 6.3
4.0
36
25.0
21.5" 200" -
-
-
La
3LX 9.7
5.6
36 36.0
21.5" 200" 16
22
38
La
4LX 12.7
7.9
36 58.0
21.5" 200" 14
36
50
La
5LX 16.7
9.7
36 72.0
21.5" 200" 26
43
69
La
