PIX-X'tra® 传统/窄V/英制窄V截面

体验产品

我们令人惊叹的交互式 3D 皮带模型让观众可以通过丰富的渲染从任何角度或比例查看产品，从而获得产品的动手体验。

产品规格

  • 橡胶外层有帆布保护，经过特殊处理让产品更加耐用
  • 防静电、耐油和耐热
  • 传统截面: 最大推荐带速为 30 米/秒, 窄V截面: 最大推荐带速为 42 米/秒,英制窄V截面: 最大推荐带速为 45 米/秒
  • 温度范围：-18°C 至 +80°C
  • 具有ATEX认证的FRAS（防火防静电）带



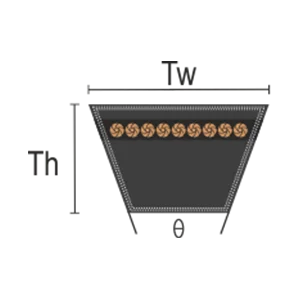

具体结构

  1. 具有耐磨斜切氯丁橡胶处理的帆布
  2. 线绳有高强度粘结胶保护
  3. 高强度、低拉伸、经过特殊处理的聚酯线绳
  4. 复合高模压缩橡胶



注意

如有要求，可提供中间全系列尺寸

如有要求，可提供芳纶线绳结构

参考标准

  • IS 2494, BS 3790, ISO 4184, DIN 2215-1975, RMA IP-22, RMA IP-23, DIN 7753

应用

传统,窄V,英制窄V截面 应用于动装置、发电机、鼓风机、球磨机、轧机、破碎机、压缩机、泵、湿磨机、家用电器、水泥工业、钢铁工业等行业


产品范围

Section Top Width (mm) Thickness (mm) Angle (Degree) Min. Pulley Dia. (mm) Manufacturing Range Belt Length Factor (mm) Length Desg.
Min. (inch / mm) Max. (inch / mm) Lp to La Li to Lp Li to La
Classical Section
8 8 5 40 40 39.0" 170.0" 12
 19
 31
 Li
Z 10 6 40
 45 18.0" 170.0" 16
 22
 38
 Li
A 13 8 40
 71
 18.0" 256.0" 14
 36
 50
 Li
B 17 11 40
 112 18.0" 927.0" 26
 43
 69
 Li
20 20 13 40
 160 31.5" 927.0" 31
 48
 79
 Li
C 22 14 40 180 31.0" 927.0" 32
 56
 88
 Li
25 25 16 40 250 50.0" 393.0" 39
 61
 100
 Li
D
 32 19 40 355 44.5" 927.0" 40
 79
 119
 Li
E 38 23 40
 500 90.0" 927.0" 53
 92
 145
 Li
Wedge Section
SPZ 10 8 40 63 494mm 4025mm 13
 37
 50
 Lp
SPA 13 10.0
 40 90
 576mm 6547mm 18
 45
 63
 Lp
SPB 17 14.0
 40 140 1000mm 23606mm 28
 60
 88
 Lp
19 19 15 40 180 2255mm 6571mm 25
 69
 94
 Lp
SPC 22 18.0
 40 224 1861mm 23629mm 30
 83
 113
 Lp
Narrow Section
3V 9.7 8 40 63 19.5" 159.0" 13
 37
 50
 La
5V 15.8 14.0
 40 140 47.0" 933.0" 25
 60
 85
 La
8V 25.4 23.0
 40 335 106.0" 939.0" 53
 92
 145
 La
Light Duty Single V-Belts
3L 9.7
 5.6
 40
 45
 19.5" 171.5" 16
 22
 38
 La
4L 12.7
 7.9
 40 65
 20.0" 258.0" 14
 36
 50
 La
5L 16.7
 9.7
 40 91
 21.0" 180.0" 26
 43
 69
 La

PIX-X'set® Classical Belts

  • Top width to height ratio 1.6:1
  • Maximum recommended Belt speed is 30 m/s
  • Permissible flex rate f=80 per second

They are primarily used in industrial drives. Classical Belts are recommended in special applications such as V-flat drives. These Belts are advantageous where reverse idlers have to be used, because of the smaller thickness.

PIX-X'set® Wedge section Belts

  • Top width to height ratio: 1.2:1
  • Maximum recommended Belt speed: 42 m/s
  • Permissible flex rate f=100 per second

Commonly used because of the space savings achieved by using these Belts. They are used extensively in most of the industrial applications ranging from a light-duty application drive to heavy load applications such as crusher drives.

PIX-X'set® Narrow section Belts

  • Maximum recommended Belt speed is 45 m/s*
  • The Maximum flex rate is f=100 per second
  • For Belt speed more than 45 m/sec,
    pulleys must be dynamically balanced

These are the standard section Belts used in USA and Canada, therefore they are primarily used in the machines exported to or from these countries. 8V section Belts are used in heavy-duty applications, for example, stone crushers.
